Water Treatment Consumables

PP Filter Cartridges

Industrial PP filter cartridge series for particulate filtration in water treatment systems, suitable as pre-treatment consumables for RO, UF and other membrane systems. This series includes melt-blown and wire-wound types.

Get Free Process Recommendation
PP filter cartridge

Overview

Product overview

The PP filter cartridge series consists of melt-blown and wire-wound variants. Melt-blown type: Made of ultra-fine polypropylene fibres thermally bonded without chemical adhesives. Randomly bonded fibres form a 3D microporous structure combining depth and fine filtration. Its gradient pore structure (looser outer layer, denser inner layer) traps suspended solids, fine particles and rust. Particle bridging occurs within pores to capture particles smaller than the nominal pore size. Wire-wound type: Formed by wound fibre yarns to meet different filtration requirements. Cartridges in this series deliver low pressure drop and good dirt holding capacity. Under suitable operating conditions, the filter media will not introduce extra contaminants into treated water. Yutai Environmental Technology can supply cartridges with customized lengths, filtration ratings and end connections to fit standard filter housings.

Key Features

Key Features

  • Series includes melt-blown and wire-wound constructions for various industrial pre-treatment scenarios
  • Melt-blown variant: thermally bonded ultra-fine PP fibres with no chemical adhesives, gradient pore depth filtration and particle bridging effect
  • Wire-wound variant: wound fibre construction for selected water and filtration applications
  • Low operating pressure drop and good dirt holding capacity
  • Filter media will not introduce extra contaminants into treated media under suitable operating conditions
  • Offers resistance to certain common acids, alkalis and partial organic solvents. Suitability must be verified against media concentration, temperature and service conditions.
  • Multiple standard lengths, filtration ratings and end connections available for common filter housings
  • Simple replacement for convenient routine maintenance

Applications

Applications

  • Pre-treatment for RO and ultrafiltration (UF) membrane systems
  • Industrial circulating water filtration
  • Process water pre-treatment in the food and beverage industry
  • Process water pre-treatment for electroplating and chemical industries
  • Front-end particulate filtration for mining and textile wastewater

Specifications

Specifications

Filter MediaPolypropylene (PP)
Product TypeMelt-blown (standard / with PP core), Wire-wound (with PP core / stainless steel core)
Manufacturing ProcessMelt-blown / Wire winding
Filtration RatingMultiple ratings available, selected according to client working conditions
Available Length10 / 20 / 30 / 40 inches
Connection TypeFlat end, 222 insert, 226 fin
DimensionMatched to standard filter housings, available upon request
Operating Differential PressureDetermined by cartridge type and operating conditions
Maximum Operating TemperatureDepends on selected material, to be confirmed on request
RemarksCartridge pore size and length can be customized according to customer requirements

Product Options

Available Models & Dimensions

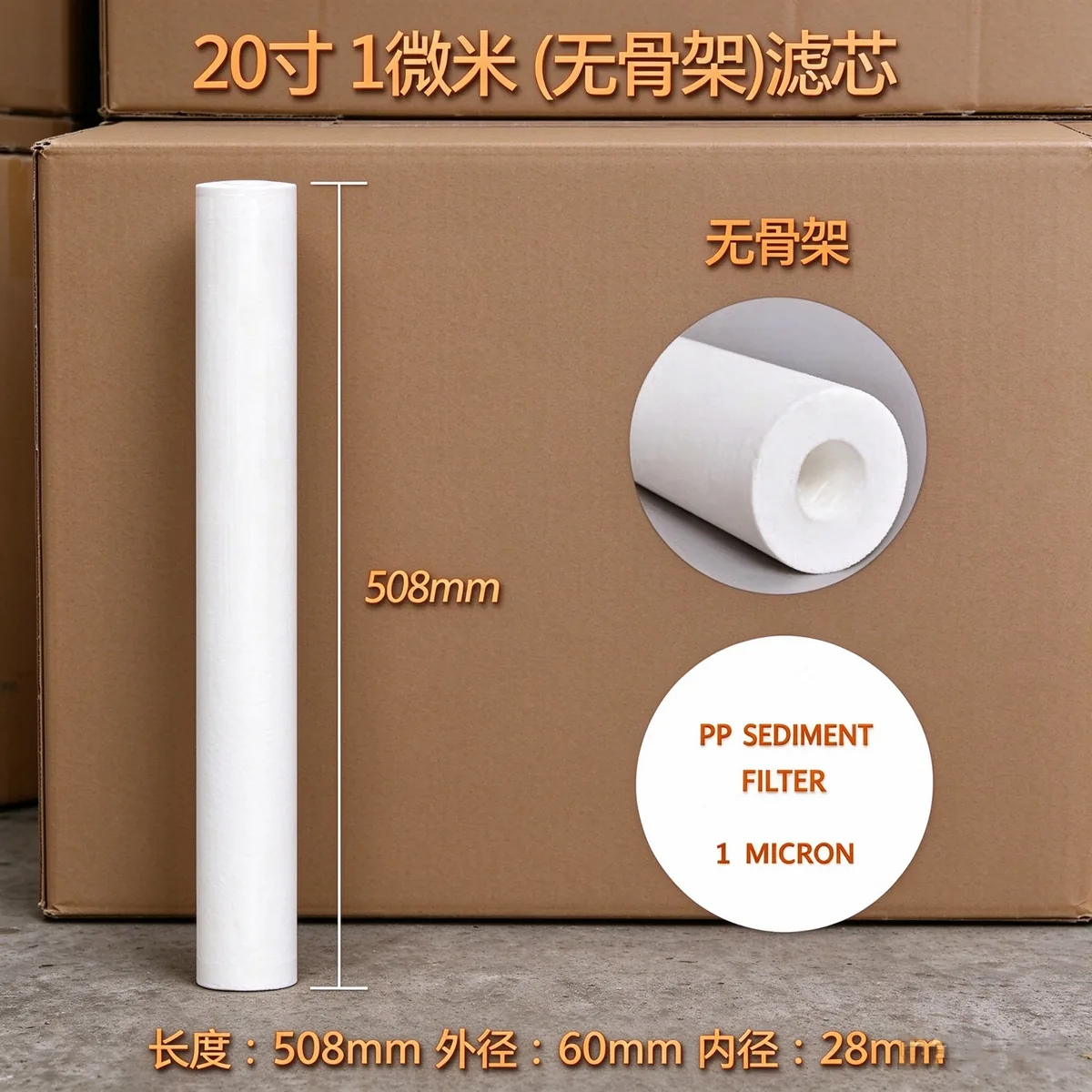

PP filter cartridge

20-inch / 1 micron

Length and filtration rating shown in the product image.

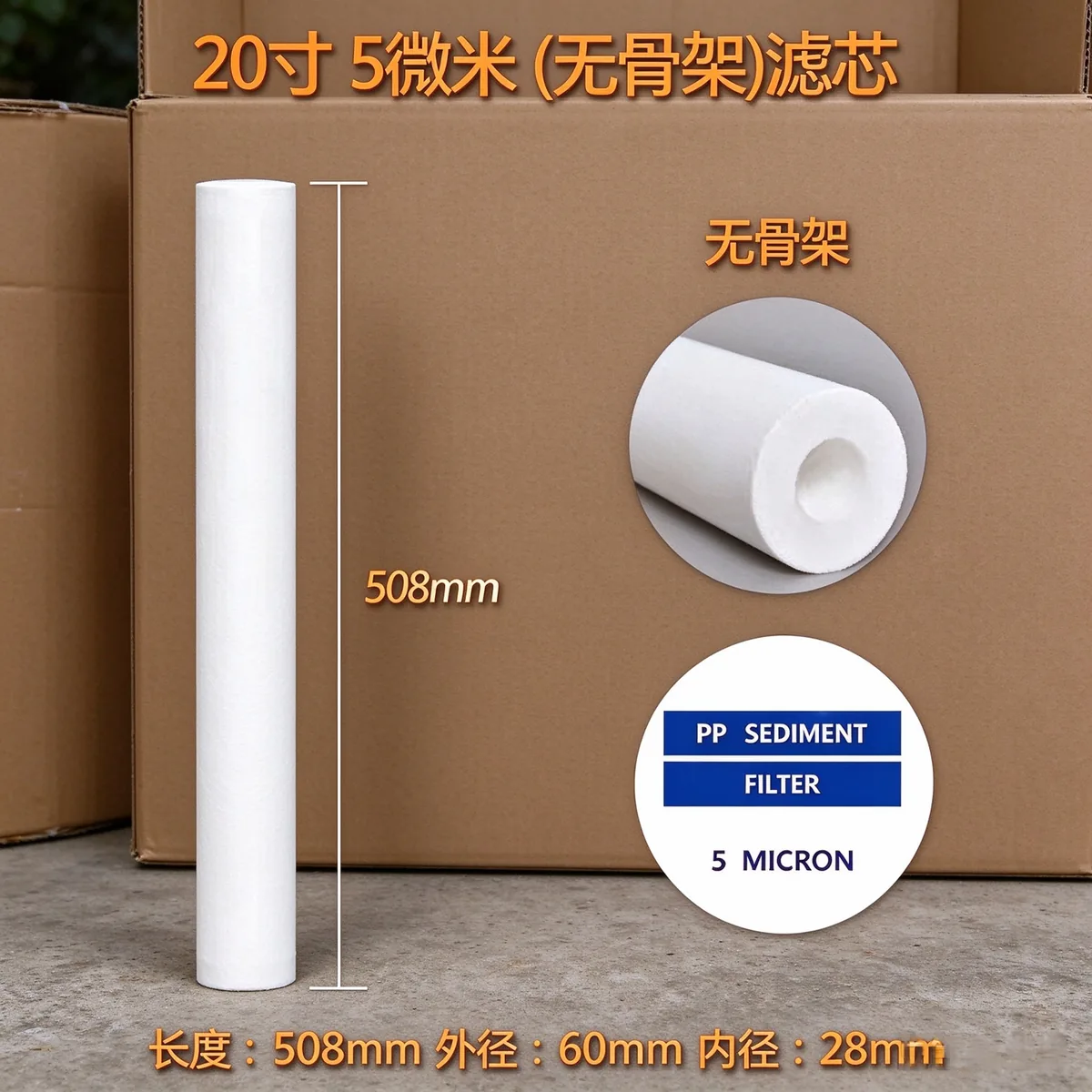

PP filter cartridge

20-inch / 5 micron

Length and filtration rating shown in the product image.

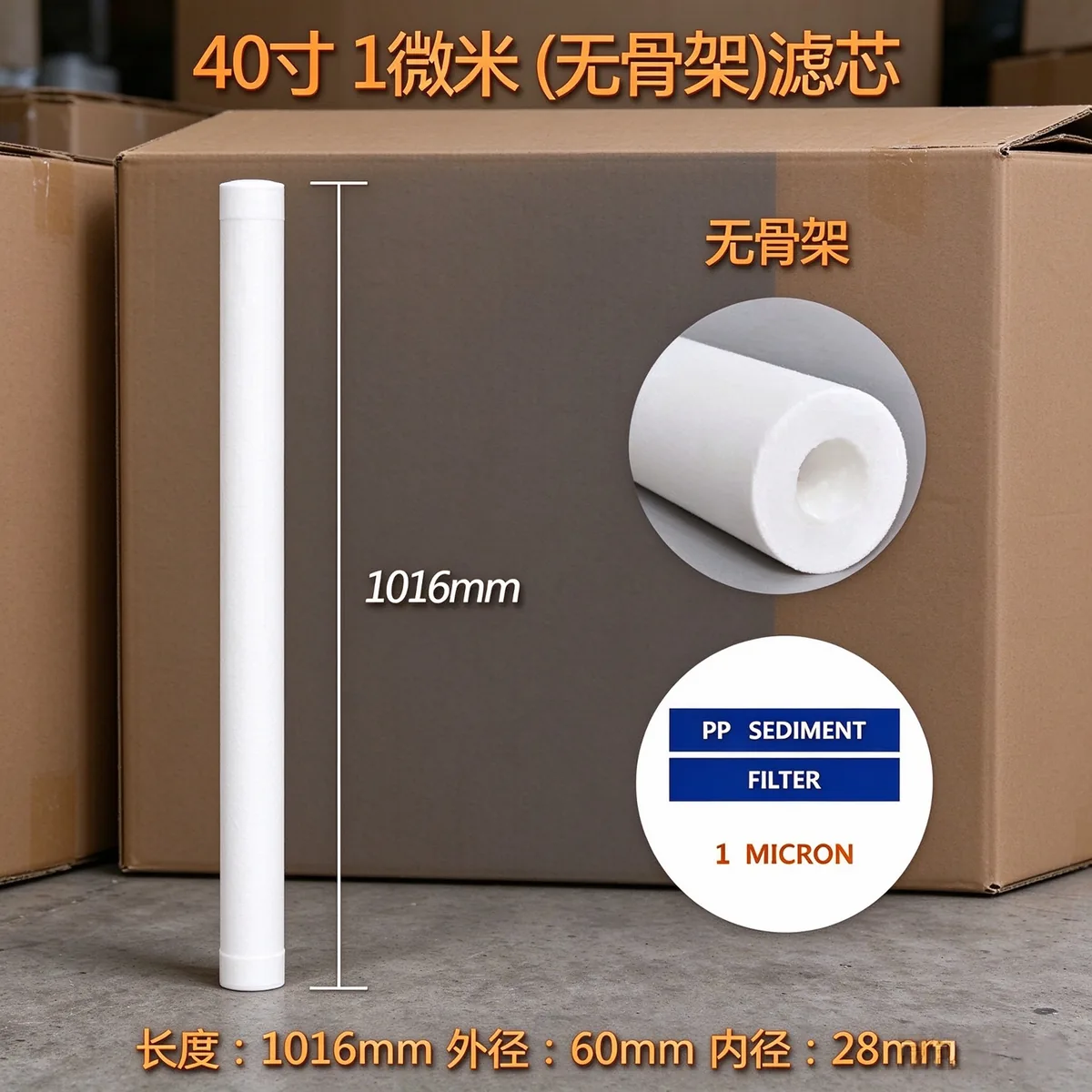

PP filter cartridge

40-inch / 1 micron

Length and filtration rating shown in the product image.

PP filter cartridge

40-inch / 5 micron

Length and filtration rating shown in the product image.

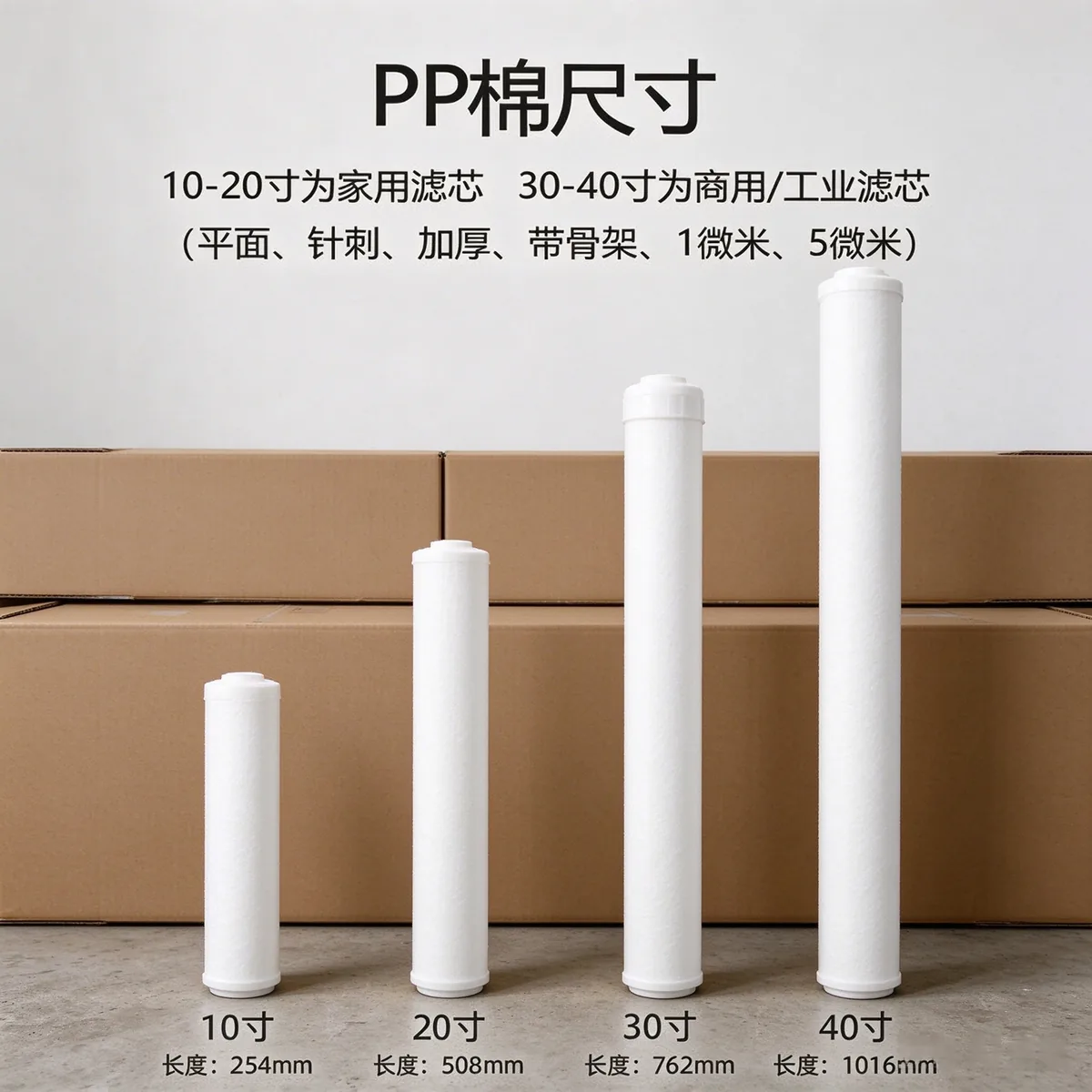

PP filter cartridge

Available sizes overview

Common cartridge lengths shown for selection reference.
